Building Owner
|
The Hong Kong Science and Technology Parks Corporation (HKSTP)
|
Conversion to radiant cooling technologies (e.g. chilled beam / chilled ceiling) with dedicated air handling system (DAHS)
Installation of smart energy management platform for data collection and visualisation, performance monitoring and evaluation, demand control and efficiency optimisation
| | Building/Project Name |
HKSTP Building 5E 3F
| | Systems |
HVAC - Airside Air Conditioning System
Smart control Platform
| | Building Types |
Commercial - Office
|
Description of the building:
Building 5E is part of the Hong Kong Science Park, which is managed by the Hong Kong Science and Technology Parks Corporation (HKSTP). This building is located at 5 Science Park East Avenue and serves as one of the key facilities within the park. It houses various offices and laboratories designed to support innovation and technology development.
- Grade A Commercial complex
- Fan-coil unit for offices with pre-treated fresh air
Retrofitting area of building 5E 3F:
- Provides “FlatCool” system to around 2000 sq ft for breakout area and meeting room
|
|
 |
Retrofitted initiative:
HVAC Air-side Air-conditioning system:
Convert the variable air volume (VAV) system to “FlatCool” system. "FlatCool System" utilizes the radiant heat transfer from occupants, equipment and fixtures inside the indoor space to the "FlatCool" radiant panel in order to cool down the room temperature.
Smart Control System:
BMS system is installed for monitor and control the water side & air side water temperature, humidity, CO2 concentration and room temperature. A high level dashboard is also included for the BMS service interface.
Observed benefits other than energy saving:
- Quiet Operation.
- Improve CO2 concentration.
- Improved indoor air environmental quality, e.g. even room temperature without air draught.
- Minimum maintenance.
- Simplified control.
- Increased ceiling headroom (less E&M zone is required for installation).
General observations of the retrofitting project:
- Performance of the “FlatCool” is well received without major complaint.
- The system can operate at 100% fresh air control during high flu seasons or pandemic period.
Other information:

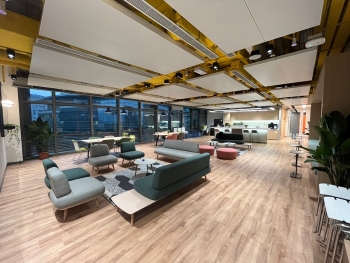

| HKSTP 5E 3F breakout area with FlatCool system: |
|

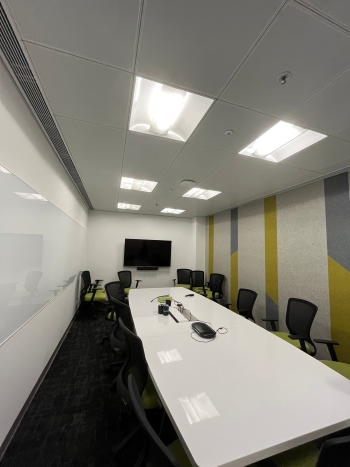

HKSTP 5E 3F meeting room with FlatCool system: |
 |
|
 |

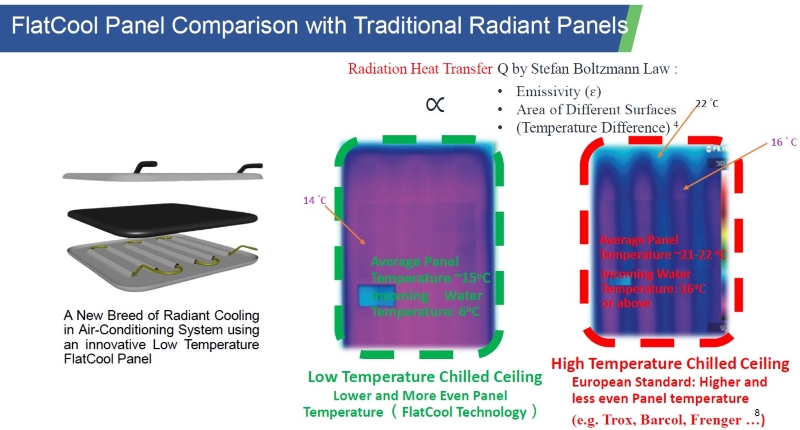

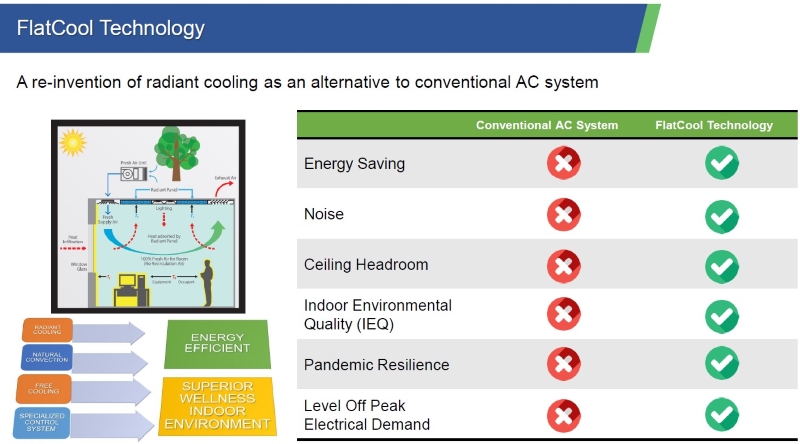

| FlatCool Panel Comparison with Traditional Radiant Panels: |
|
|
 |
|
 |
| |
|
|

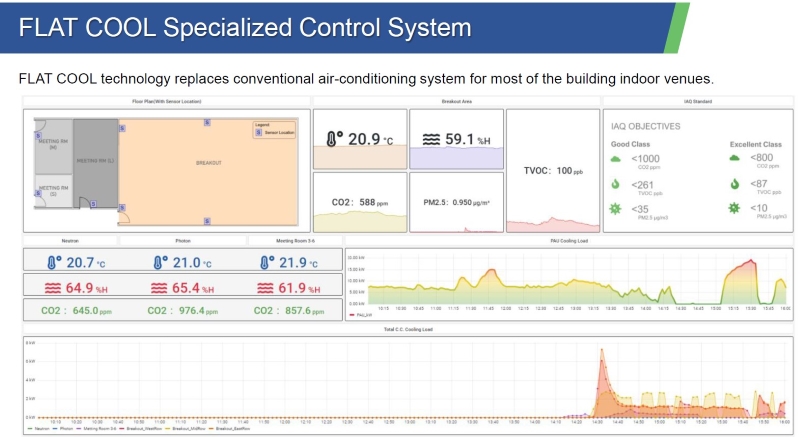

| Specialized Control System dashboard: |
|
|
 |
|
|
| Cost |
Saving |
| Total cost: |
HKD 990,000 |
Total savings/year: |
HKD 50,000 |
| Cost breakdown: |
Air side, water side and radiant panels: HKD 840,000
Smart Control System: HKD 150,000 |
Payback: |
12 years (compared to VAV system) |
| Name of consultant and contractors: |
Subsidy/ Funding |
| M Concept Studio Limited |
The project is supported by: |
Hong Kong Science and Technology Parks Corporation (HKSTP) |
| |
|
