Building Owner
|
PHC Wing Kwong College
|
Application of solar film / heat reduction/ insulated coating at façade / skylight
| | Building/Project Name |
PHC Wing Kwong College
| | Systems |
Curtain Wall and skylight System
| | Building Types |
Others - School/Education Institution
|
Description of the building:
PHC Wing Kwong College was built over 50 years ago. The school has 6 floors, which include 20 general classrooms, 21 various function rooms, 1 multi-purpose area and 1 school hall.
- The building is air-conditioned with an air-cooled chiller system covering the multi-purpose area, the school hall and 6/F & 7/F school management committee office.
- The other classrooms use split-type air conditioners.
|
|
 |
Retrofitted initiative:

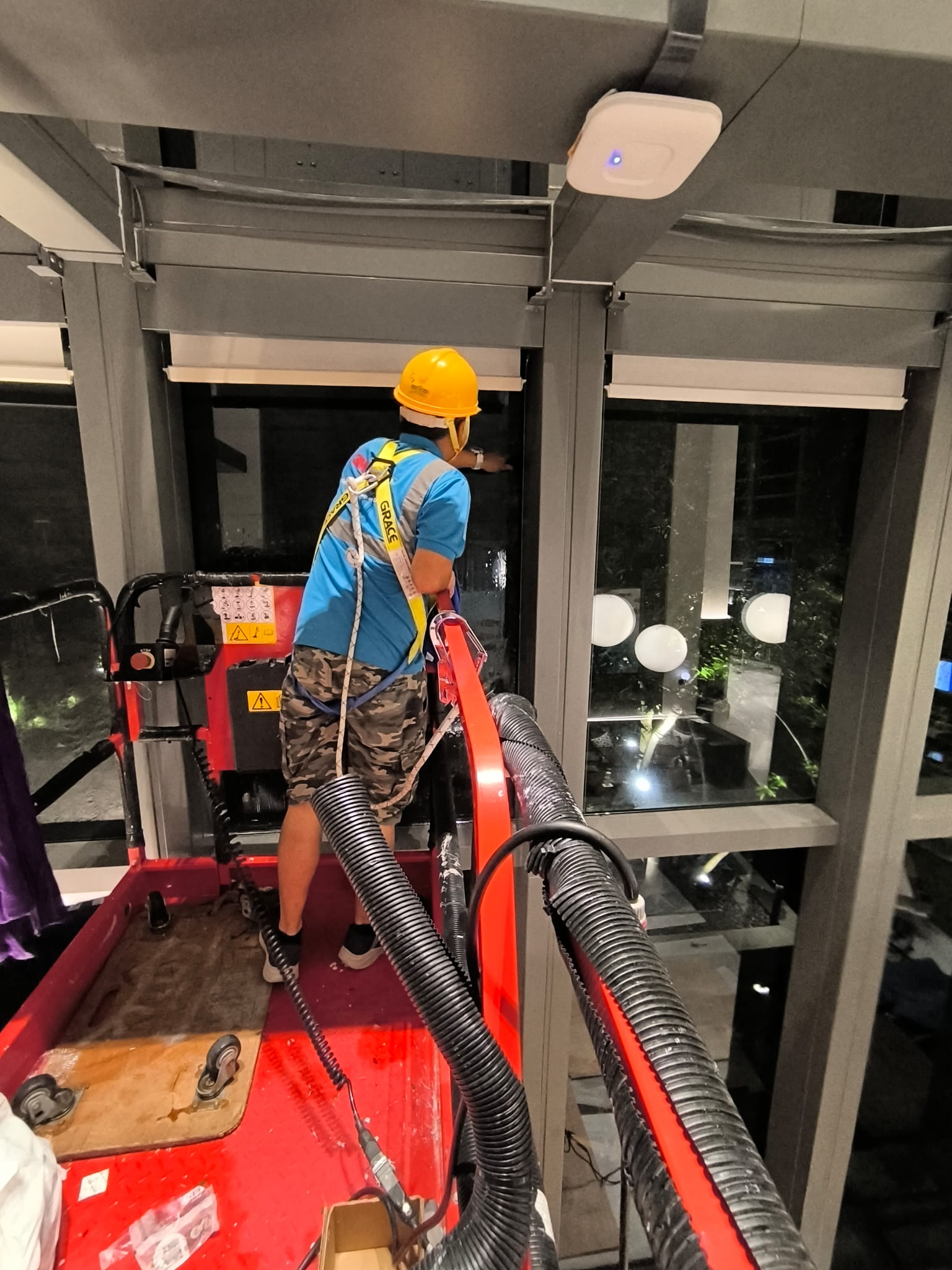

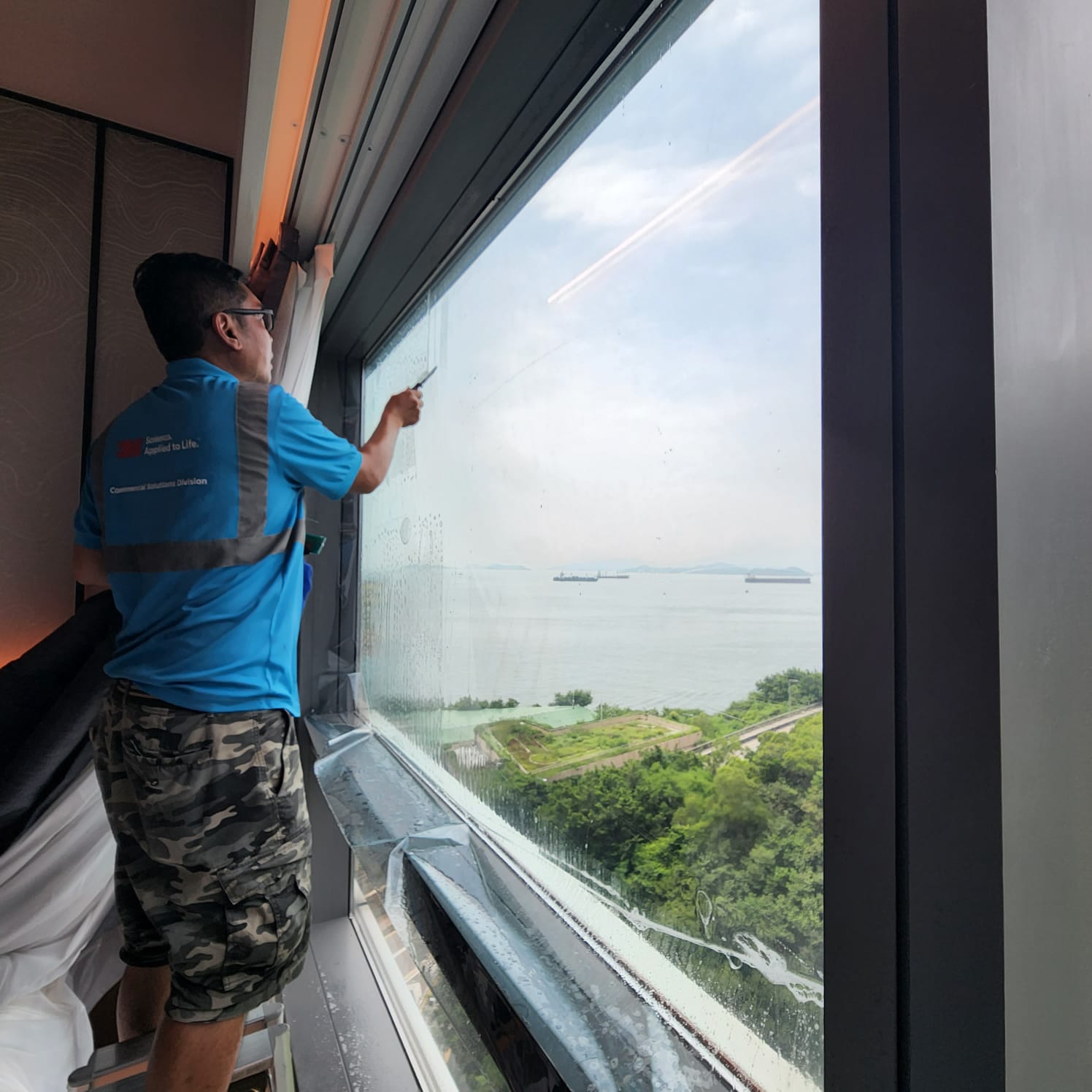

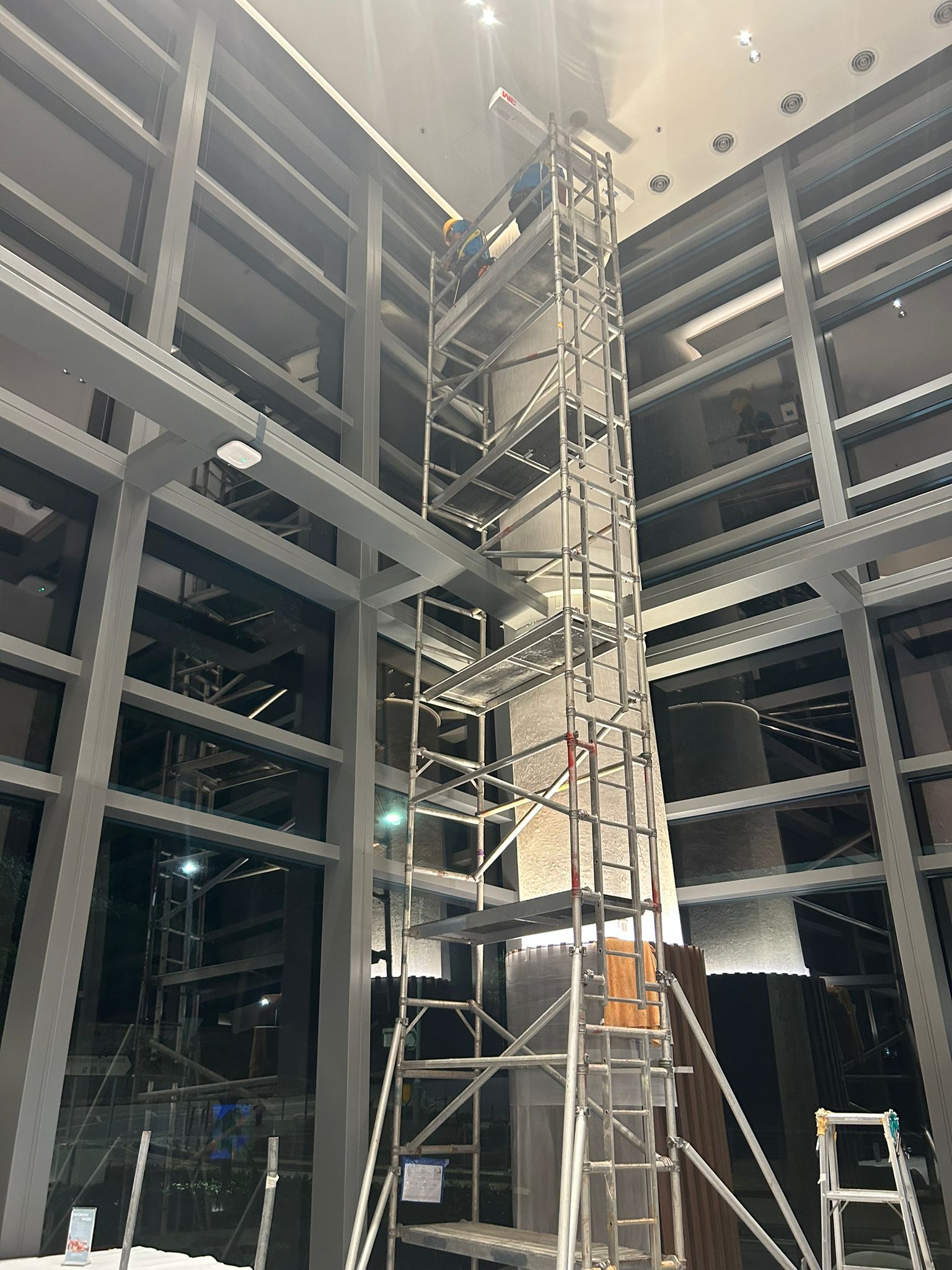

Application of solar film on curtain wall: Shading coefficient enhancement for building envelope in 7/F Multi purpose area, 5/F, 2/F Hall, 1/F Multi purpose with curtain wall facing to East side and South side.
Observed benefits other than energy saving:
- Helps reduce glare and eye discomfort.
- Helps prolong the life and vibrancy in the fabric of furniture and carpets.
- Helps reduce the chance of injury from flying glass.
- High visible light transmission providing excellent aesthetics.
General observations of the retrofitting project:
- Low interior and exterior reflectivity enhances views while maintaining exterior appearance.
- Non-metalized film with no signal interference and no chance for corrosion.
- Helps extend the life of furnishings by significantly reducing harmful UV rays, the largest cause of fading.
Other information:
| Cost |
Saving |
| Total cost: |
HKD 70,436.8 |
Total savings/year: |
HKD 31,427.91 |
| Payback: |
1.34 years |
| Subsidy/ Funding |
| The project is supported by: |
CLP Eco Building Fund (HKD 28,302.4) |
| |
|
Application of solar film / heat reduction/ insulated coating at façade / skylight
|
|
|
