Building Owner
|
Television Broadcasts Limited
|
Using lower pressure drop air filters with new technologies and features that can improve filter efficiency
| | Building/Project Name |
TVB City
| | Systems |
HVAC - Airside Air Conditioning System
| | Building Types |
Others - other building types
|
Description of the building:
TVB City is a 110,000 square-metre facility, that comprises the following buildings:
- Main Block - a 11 storey building used as generic office building/hotel scenes for TVB's modern dramas
- Drama Studio Block - used for shooting drama shows
- News and Car park Block - used for news and information which car park opening 24-hours 7-days a week
- Variety Studio Block - used for shooting variety and specials
- Workshop Block
- Link Block - with Canteen and Cafe facilities
Retrofitted initiative:
HVAC Air Handling Unit System (with Variable Speed Fan):

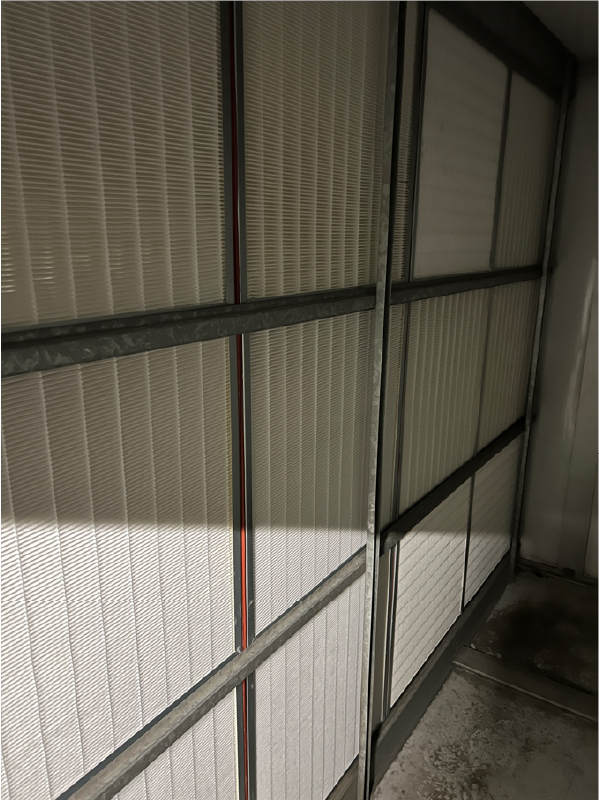

Replace pre-filters and bag filters with Nanofil Low Energy Air Filters (LEAF) at HVAC Air Handling Unit System.
What have been/will be done on TVB City?
Replace the existing pre-filter + bag filter with Low Energy Air Filter (LEAF)

Observed benefits other than energy saving:
- Over 50% reduction of filter waste
- Around 240 tonnes reduction of carbon emission (based on 70 sets of HVAC Air Handling Unit system)
- Maintenance resources reduction (manpower, cost, time) on changing filter

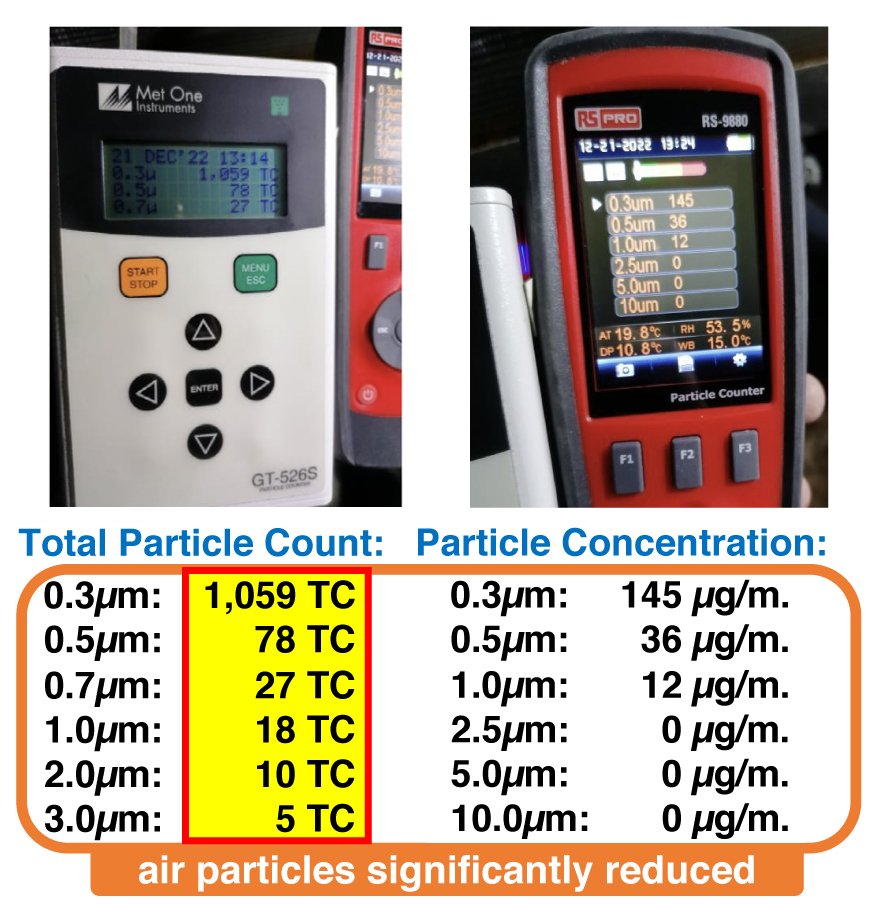

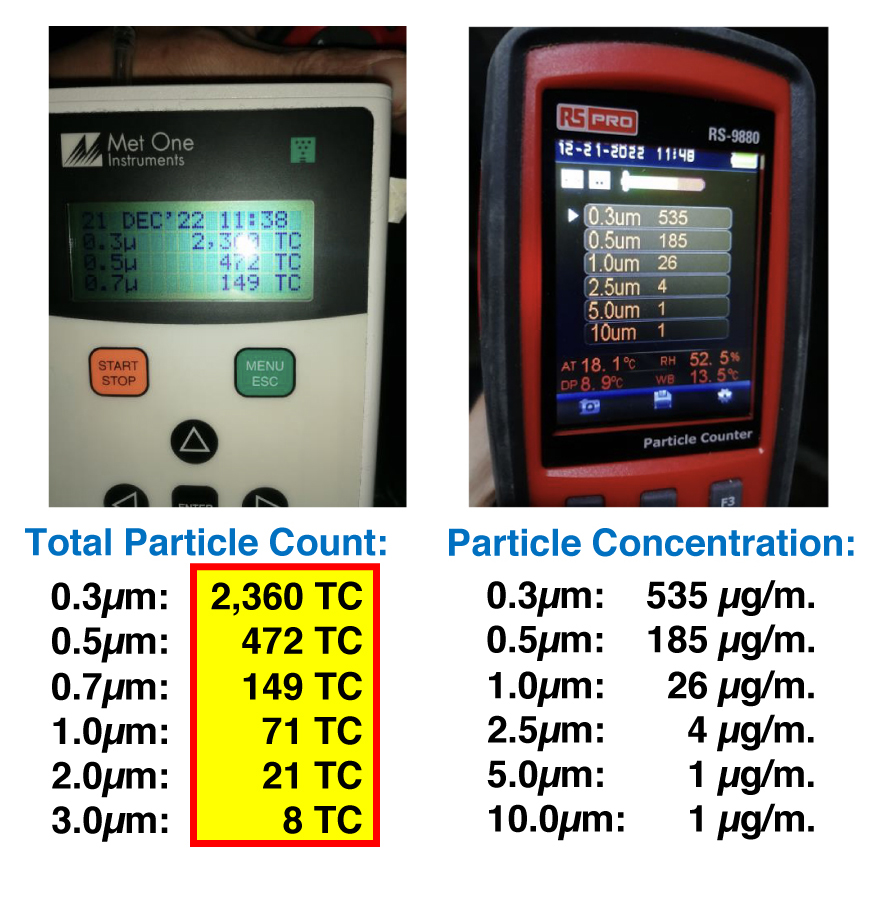

- IAQ improvement, particularly ultra-fine particles (around 50% reduction on PM0.3 and PM2.5)
General observations of the retrofitting project:
- Reduce filter storage space requirement, utilize space usage.
- Replacement of HVAC filters is easy and fast. Does not affect the tenants. Positive comment from contractors.
- Pressure drop across air filters substantially decreased in AHU.
- Electricity consumed by HVAC system is reduced.
- Tenants are happy as a result of IAQ improvement.
Other information:
Implementation

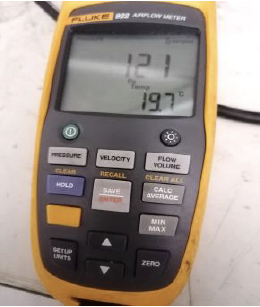

AHU#1: Cardboard Frame Pre-filter + Bag Filter
(measurement after filtration by filters)
Pressure: 121Pa

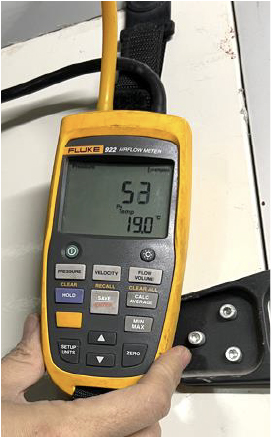

AHU#2: NanoFIL Mini-pleated Filter (LEAF)
(measurement after filtration by filters)
.jpg)
Presure: 52Pa
Conclusion: Pressure reduced after replacement with LEAF
| Cost |
Saving |
| Total cost: |
HKD 435,381 |
Total savings/year: |
HKD 1,527,205 |
| Savings/year breakdown: |
Electricity tariff : HKD 1,038,845
Pre-filters and bag filters cost : HKD 447,640
Filter maintenance (labour cost) : HKD 40,720 |
| Cost breakdown: |
Nanofil Low Energy Air Filters cost per year : HKD 435,381 |
Payback: |
0.29 years |
| Awards |
| Awards received by the project: |
• Chinese Invention Patent 2022
• Hong Kong Standard Patent 2019
• Bronze Medal, Hong Kong Inventions 2019
• "Outstanding Technology (Building)", Build4Asia Awards 2022
• "Most Favourable Startup", Jumpstarter 2017
• "Best Solution (Voting)", B4B Challenge 2021-22, ICT Expo |
| Subsidy/ Funding |
| The project is supported by: |
CLP Eco Building Fund |
| |
|
